Features:

·Single-sided light source can independently control angle and brightness

·Diffusion plate and polarizing film are optional to diffuse the light evenly

·Strong compatibility, can be used for large field of view lighting and small field of view detection

Application scope:

·Appearance inspection of metal parts

·Mark point positioning

·Dispensing inspection

·Plug-in pin flatness inspection

·1D and 2D code recognition

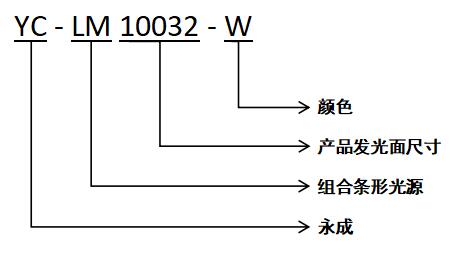

Model description：

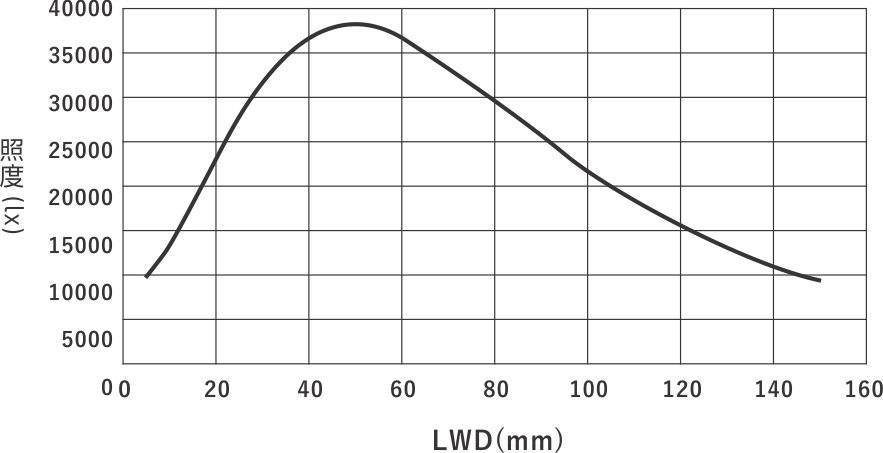

Illuminance curve graph:

Note: The data is for reference only and there may be actual errors.

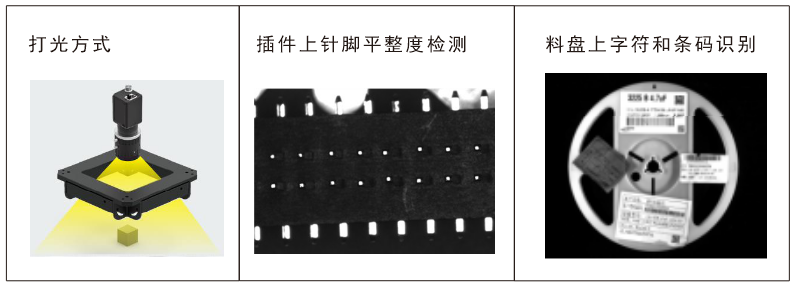

Application cases：

Product list of each model：

（1) Usage environment: Room temperature 18-30℃ is optimal

（2) Service life: 50,000 hours for red light, 60,000 hours for green light, blue light, and white light (brightness reduced to 50% of factory value)

（3) Value-added services: two years of free technical support, free sample lending
