Features：

·Better depth of field and uniformity, parallel light path, small lighting area

·Improve the contrast and freely match the mounting hole positions

·Eliminate the boundary effect of the light source and greatly reduce the reflected light at the edge of the product

·Generally used with telecentric lenses

Application scope:

·Micro original detection

·Vision system environment with small installation space

·Product outline size measurement

·Surface scratch detection of glass products

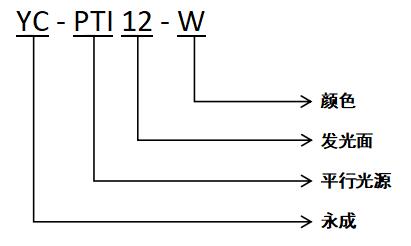

Model composition description:

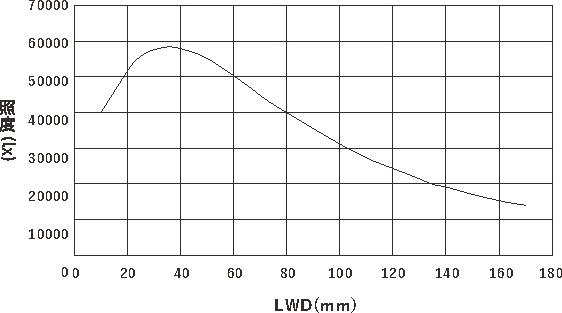

Illuminance curve graph:

Note: The data is for reference only and there may be actual errors.

Application cases:

Product list of each model:

（1) Usage environment: Room temperature 18-30℃ is optimal

（2) Service life: 50,000 hours for red light, 60,000 hours for green light, blue light, and white light (brightness reduced to 50% of factory value)

（3) Value-added services: two years of free technical support, free sample lending
