R

G/B/W

01

YC-CL20

19×19

1.1W

1.4W

24V

YC-SV2460-4S
YC-DV2460-4S
YC-PV2460-4S

02

YC-CL30

30×30

2.4W

3.3W

24V

03

YC-CL40

40×40

3.2W

4.4W

24V

04

YC-CL50

50×50

3.7W

6.1W

24V

05

YC-CL60

60×60

5.4W

8.2W

24V

06

YC-CL70

70×70

6.2W

9.3W

24V

07

YC-CL80

80×80

6.8W

10.2W

24V

08

YC-CL90

90×90

8.1W

12.2W

24V

09

YC-CL100

100×100

9.2W

14.2W

24V

10

YC-CL120

120×120

12.2W

18.3W

24V

11

YC-CL140

140×140

16.1W

24.3W

24V

12

YC-CL170

170×170

16.5W

26.8W

24V

12

YC-CL5080

50×80

6.3W

6.3W

Features：

·Uniform light emission, high brightness, clear imaging

·Efficient heat dissipation and extended lifespan

·Specially coated beam splitter to reduce light loss

·Highlight the uneven surface of objects and overcome surface reflection interference

Application scope:

·Scratch detection on highly reflective surfaces such as metal glass bottles

·QR code detection

·On-wafer laser marking inspection

·Engraving characters on bearings and beverage cans

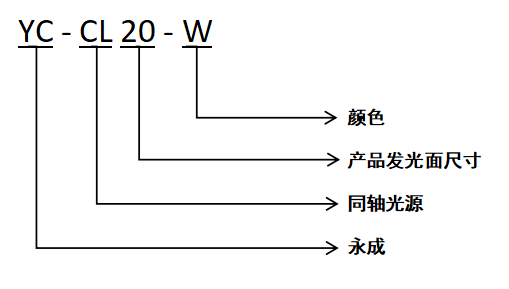

Model composition description:

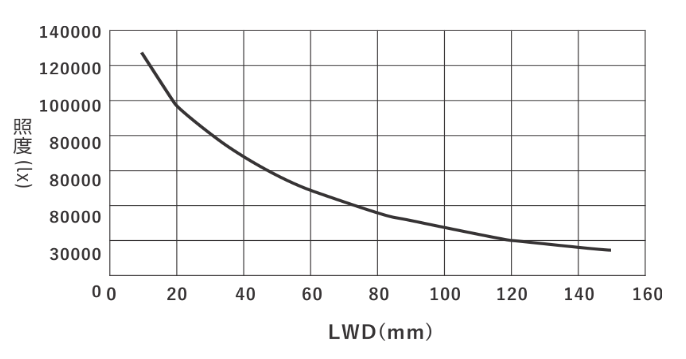

Illuminance curve graph:

Note: The data is for reference only and there may be actual errors.

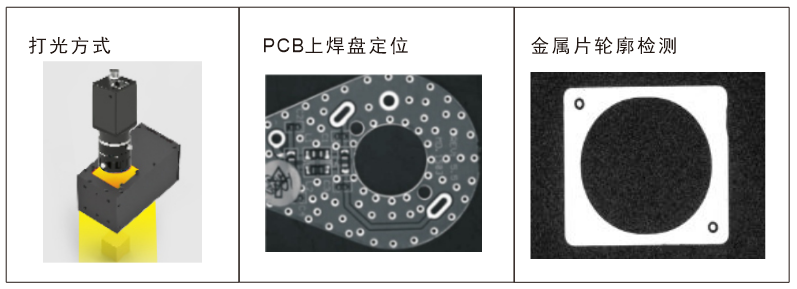

Application cases：
