Product list of each model：
serial number | model | outside path
（mm） | power | control voltage | Applicable controller |
R | G/B/W |
01 | YC-RL2575 | 25 | 0.6W | 0.9W | 24V | YC-SV2460-4S
YC-DV2460-4S
YC-PV2460-4S |
02 | YC-RL3460 | 34 | 0.66W | 0.9W | 24V |
03 | YC-RL3475 | 0.7W | 1.2W | 24V |
04 | YC-RL3590 | 0.6W | 0.8W | 24V |
05 | YC-RL5000 | 50 | 1.2W | 1.6W | 24V |
06 | YC-RL5260 | 2.1W | 3.2W | 24V |
07 | YC-RL5390 | 1.4W | 2.0W | 24V |
08 | YC-RL5445 | 2.1W | 3.2W | 24V |
09 | YC-RL6020 | 60 | 1.1W | 1.5W | 24V | YC-SV2460-4S
YC-DV2460-4S
YC-PV2460-4S |
10 | YC-RL6630 | 3.6W | 6.2W | 24V |
11 | YC-RL6690 | 1.8W | 2.7W | 24V |
12 | YC-RL7045 | 74 | 1.1W | 1.8W | 24V |
13 | YC-RL7075 | 1.9W | 2.8W | 24V |
14 | YC-RL7430 | 1.9W | 2.8W | 24V |
15 | YC-RL7460 | 2.6W | 3.9W | 24V |
Features: ·High-density LED array, high brightness ·Compact design saves installation space ·Unique heat dissipation structure improves light source stability ·Optional diffuser plate to diffuse light evenly
Application scope: ·Highly reflective or uneven surface curve detection ·Highlight metal mobile phone case panel character detection ·High-brightness IC plastic package silk screen inspection ·High-speed assembly line electronic component surface inspection ·Aluminum foil packaging inspection of medical drugs

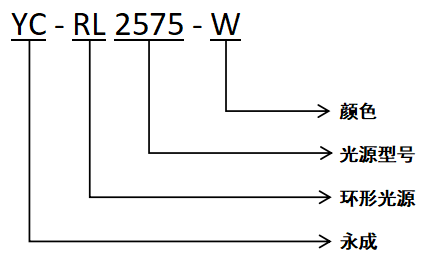

Model description：

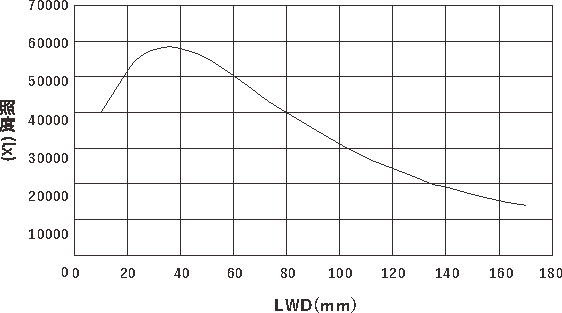

Illuminance curve graph:
Note: The data is for reference only and there may be actual errors.
Application cases：
|
