R

G/B/W

01

YC-FL3262

40×40

1.8W

2.3W

24V

YC-SV2460-4S
YC-DV2460-4S
YC-PV2460-4S

02

YC-FL5050

50×50

2.2W

2.9W

24V

03

YC-FL6060

70×70

3.8W

6.3W

24V

04

YC-FL8080

80×80

4.6W

8.2W

24V

05

YC-FL100100

100×100

8.2W

12.8W

24V

06

YC-FL100200

100×200

15.2W

24.3W

24V

07

YC-FL120120

120×120

8.8W

15.2W

24V

08

YC-FL150300

150×300

18.5W

26.4W

24V

09

YC-FL150346

150×346

12.6W

18.8W

24V

10

YC-FL180180

180×180

19.7W

28.6W

24V

11

YC-FL200200

200×200

20.4W

33.8W

24V

12

YC-FL250250

250×250

33.5W

48.8W

24V

13

YC-FL250400

250×400

24.6W

36.8W

24V

14

YC-FL300300

300×300

48.7W

67.8W

Features：

·High-density SMD LED lamp beads

·High brightness, high uniformity

·Various sizes can be freely customized according to customer requirements

Application scope:

·Product size inspection

·Product contour detection

·Medicine and beverage liquid level detection

·Camera module detection

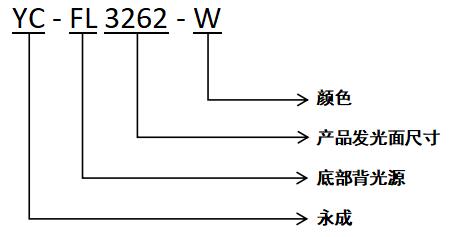

Model composition description:

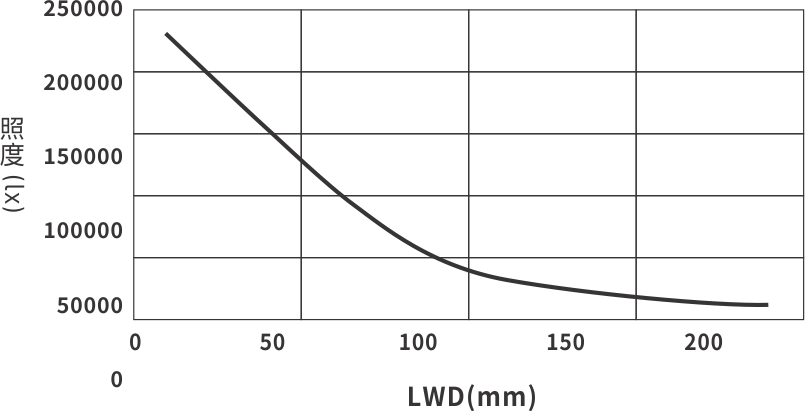

Illuminance curve graph:

Note: The data is for reference only and there may be actual errors.

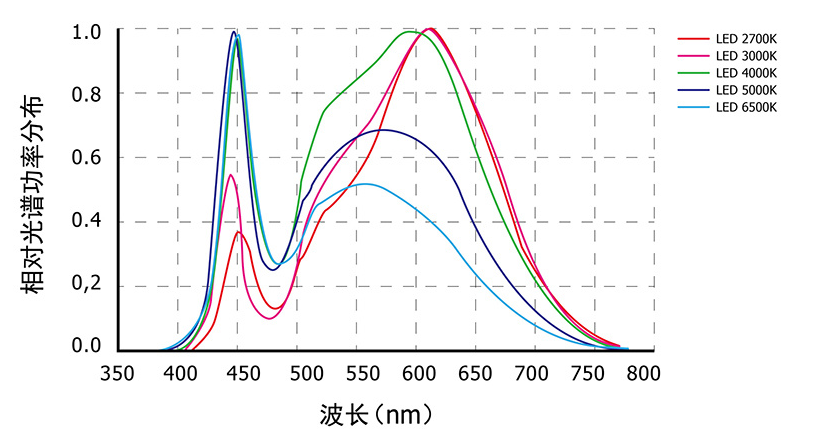

Spectrum:

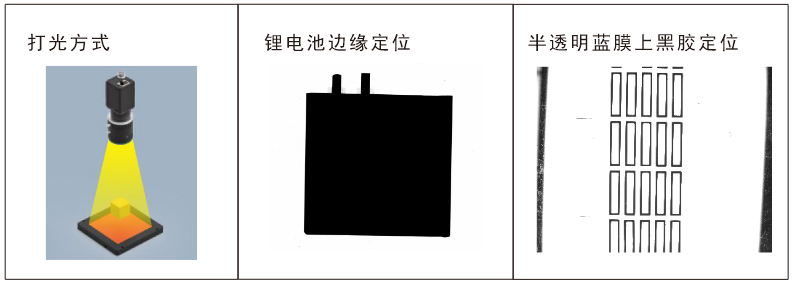

Application cases:
