Product parameters:
Product specifications and models are different, and individual parameters will be different.

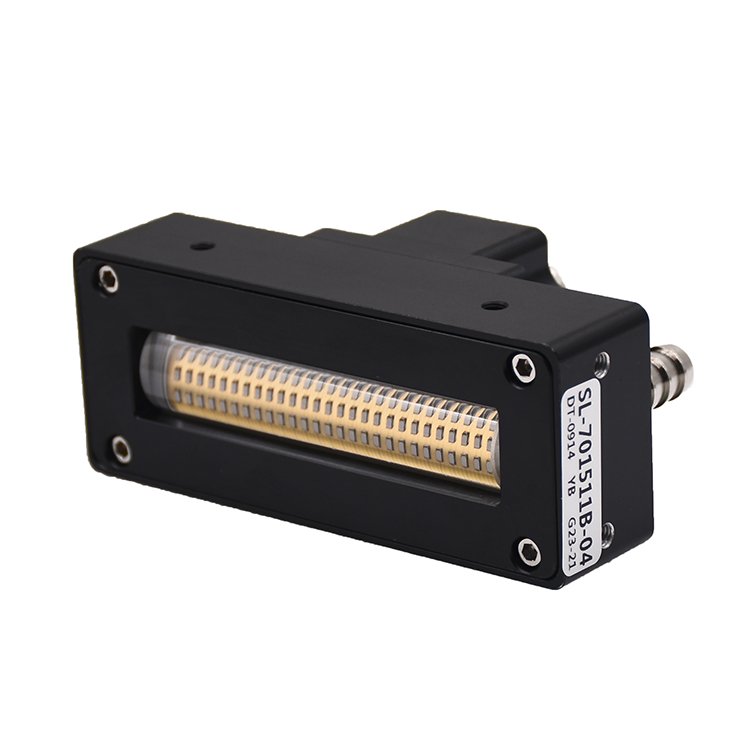

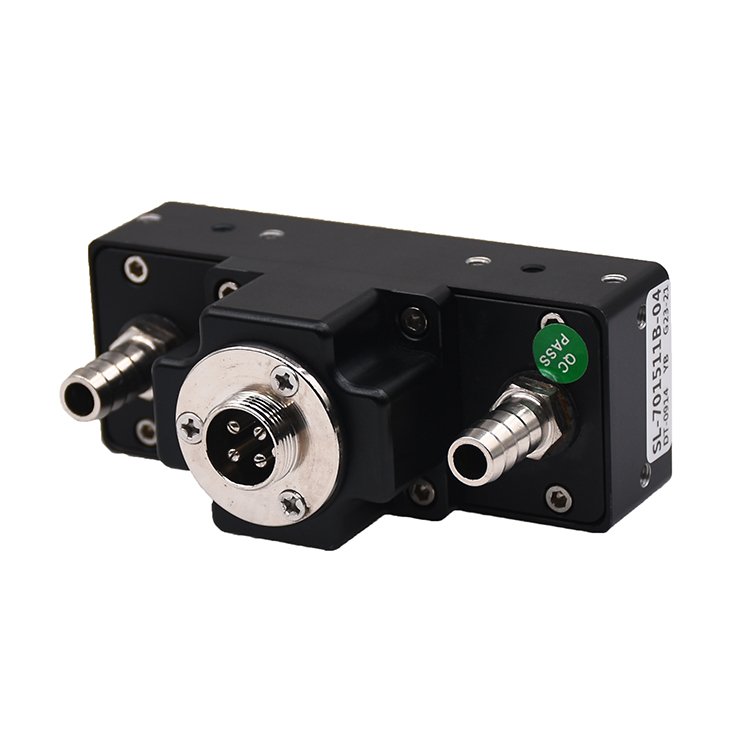

| Product model | SL-701511B | Cooling method | water cooling |
| Wavelength (nm) | 365-405 | Power input | AC220V |
| Irradiation area (mm） | 70*15 | Operating environment (℃) | 0-50 |
| Irradiation distance (mm） | 5-10 | Service life (H) | 20000 |
| Irradiation intensity (W/cm²) | Adjustable 0-10 | Control mode (optional control mode) | Level control (3-24V） |
Product Description:

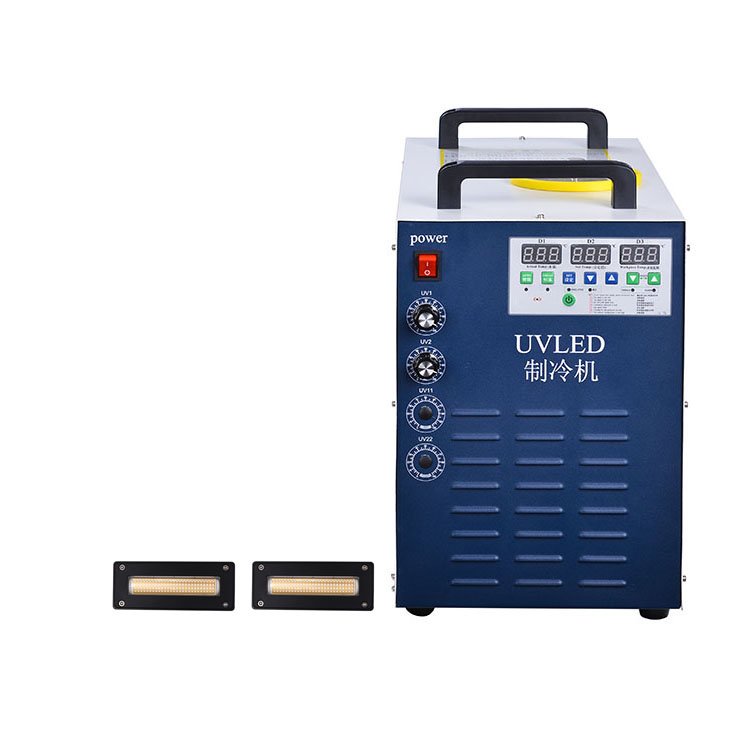

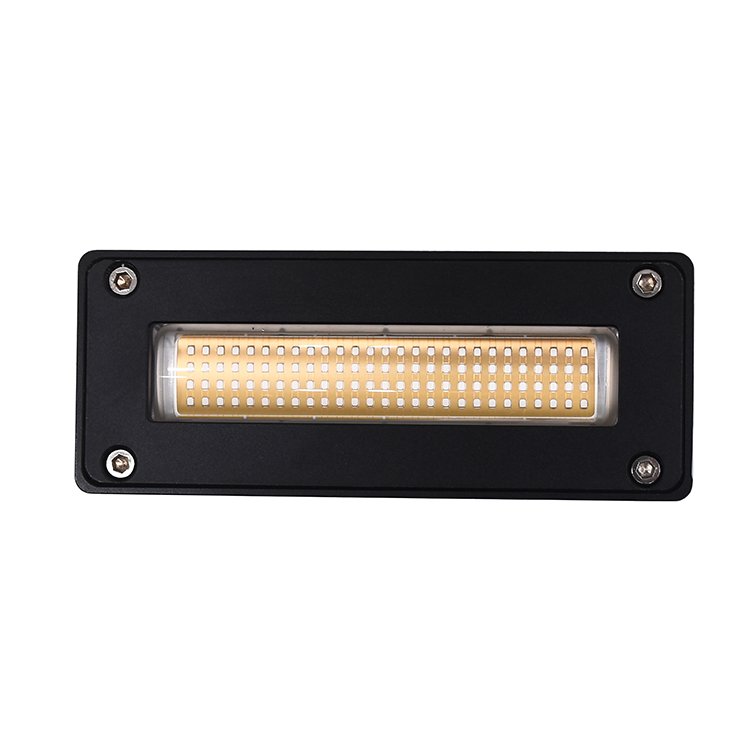

Features of UVLED line light source curing system
The equipment uses UVLED Wire The light source design has a service life about 10 times longer than traditional mercury lamps.
It emits no infrared rays and has no thermal radiation. It is not only suitable for curing general materials, but is also capable of heat-sensitive and high-precision bonding processes such as plastic substrates, lens bonding and electronic products.
The irradiation intensity is strong. Compared with mercury lamps, the irradiation time of the operation is greatly shortened and the production efficiency is improved.
Low energy consumption, only 1/10 compared to traditional mercury lamps.
Application industries:
1. Microelectronics industry, such as mobile phone component assembly, hard disk head assembly, DVD/digital camera accessories reinforcement, motor component assembly, semiconductor chip processing, sensor production, etc.
2. PCB industry, such as component fixation, core circuit chip protection, antioxidant coating protection, circuit board conformal coating, ground wire flying wire coil fixation, wave soldering through hole mask, etc.
3. Optical industry, optical component matching, image instrument assembly, stereolithography, etc.
4. Optical communication industry, passive device structure bonding, sealing and micro device fixation, active device plastic packaging structure, optical fiber cable outer coating, marking, bonding, etc.
5. Printing, packaging and coating industry, UV ink curing of paper, plastic film and other materials, coating curing of metal, wood, glass, ceramic and other materials, barcode QR code curing, etc.
six, Medical equipment, medical accessories curing bonding, etc.
seven, Scientific research and institutes, polymer chemistry, photochemistry, semiconductors, medical polymer materials, etc.
