What parts does a uv curing system consist of?read count [2174] release time：2021-12-13 09:56:00
Nowadays, uvled Curing is very common both in industrial production and in daily life, but you know uvled What parts does the curing equipment consist of? Generally speaking, uvled Curing equipment is composed of a light source system, a heat dissipation system, and a control system. For some actual needs, transmission systems and boxes will also be expanded.

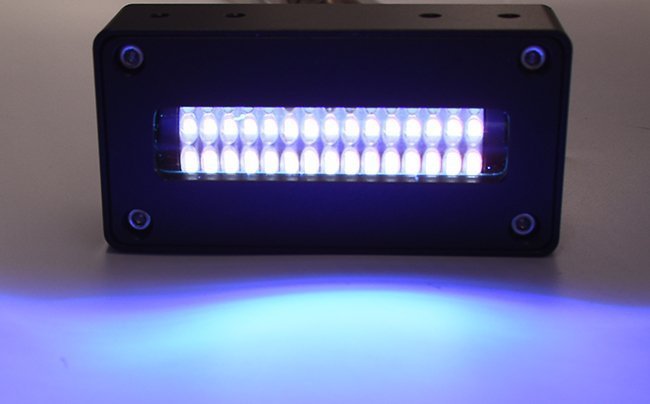

one, Light source system
led Luminous chip. uvled Solidification is actually through led The chip emits ultraviolet light of a specified wavelength to make the liquid uv The photoinitiator in the material is stimulated to become free radicals or cations, thereby initiating the polymerization of polymer materials containing active functional groups into an infusible and insoluble solid. Simply put, it is caused by ultraviolet light. uv Material solidifies.
two, Cooling system
Natural air cooling, forced air cooling, water cooling. uvled Heat will be generated during use. If the temperature is too high, it will affect led The service life of the lamp will also increase the speed of light decay. Natural air cooling means that the temperature during use can be reduced to normal use temperature through natural heat dissipation. Forced air cooling and natural air cooling cannot reduce the temperature to the normal operating temperature, so a fan must be used to uvled The curing lamp temperature drops to normal operating temperature. Water-cooled heat dissipation uses an external water cooler to dissipate and cool down the temperature inside the device through water. It is usually equipped with water-cooling. uvled Curing light sources are relatively high-power or long-lasting curing equipment.
three, control system
The main function of the control system is to regulate uvled The power, illumination duration, timing switch, etc. of the curing equipment can better coordinate with production.
In printing, electronics, optics, medical care, building materials, machinery, scientific research, etc., uvled The use of curing equipment has become more and more widespread. uvled There are many types and specifications of curing equipment, which are required for different usage scenarios. uvled The curing equipment is also different, but its ultimate goal is the same, which is to uv glue, uv ink, uv paint, uv Varnish, etc. uv The material cures.
